Electrolytic Capacitors

https://korean-electronics.com//inquirySamhwa Electric, established in 1973, is an enterprise that acted as a pathfinder in the early Korean electronic components industry and has been growing steadily. At present, we have completed organization of the global selling base (operating 13 subsidiaries and representative offices in eight countries) and grown as an enterprise playing a leading role in the electronic components industry of electrolytic capacitors throughout the world.
Samhwa Electric promotes Green-Cap (super capacitor), its strategic product, to the market for alternate power sources and regeneration energy according to global increase of eco-friendly power demand. Recently, pursuing our eco-friendly environmental policy, Samhwa Electric is finding its way into the electric apparatus market by developing the hybrid cap, another strategic product of the company, following the increase of demand for electric cars.


EDLC (Electric Double Layer Capacitor)

This product has intermediate characteristics between an Al capacitor and a secondary battery. Eco-friendly material is used, reducing risk of fire and explosion, thereby incurring no problems even if is damaged due to impact. It has the advantage of operating for a certain time even though the element is exposed due to problems occurring outside of the product compared with the secondary cell which is immediately heated or explodes. Its ordinary rated voltage is 2.5V or 2.7V. As it has a very long service life, the product can be used for one thousand hours at the maximum operating temperature of 70˚C. It also can be charged/discharged even at low temperature. Its cycle life is over 500,000 cycles, which is very long compared to existing rechargeable batteries.
As high-current charging/discharging is possible, there is not much change in characteristics even if charging/ discharging is carried out with a current of 10 times or more of the indicated capacity. The charging/discharging efficiency is as high as about 95%, and charging/ discharging is possible at -25 ° C compared with secondary batteries which are not charged at a subzero temperature. Therefore, this product is available in the market of wind power generation, auxiliary power, UPS, etc.


Hybrid AL E-CAP

Hybrid polymer capacitor (Conductive Polymer Hybrid Aluminum Electrolytic Capacitor) uses conductive polymer and electrolyte simultaneously, realizes the characteristics equivalent to those of the solid capacitor, and can be smaller and withstand higher voltage than the solid capacitor.
Hybrid capacitor has excellent high temperature reliability compared with the liquid electrolytic capacitor, and its frequency characteristics (high-frequency ESR) and low temperature characteristics (ESR) are equivalent to those of the solid capacitor. Its leakage current is stable compared with the solid capacitor and can withstand higher voltage. Moreover, using an electrolytic solution can improve the short failure of the solid capacitor.
Samhwa Electric has been striving to develop highquality products in order to realize the best performance and, as a result, has secured original technologies and holds a number of patents, thereby gaining a competitive edge in the global market.

korean-electronics.com | Blog Magazine of korean electronics, brands and Goods

EDLC (Electric Double Layer Capacitor)

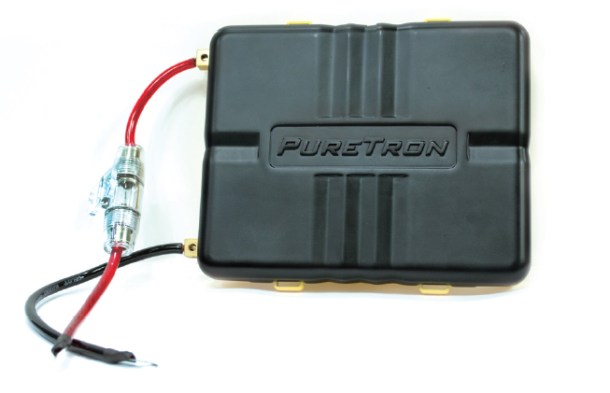

EDLChttps://korean-electronics.com//inquiry[INQ. NO. 1310C42] Pureechem is the leading manufacturer and exporter of EDLC (Electric Double Layer Capacitor), the so-called super capacitor.
The super capacitor can complement lower energy density of traditional capacitors and excels power and energy density of the secondary cells. This next-generation energy storage device provides outstanding features, including high reliability at wide operating temperatures of (-30ºC to 70ºC) and life span
of more than 100,000 of charge and discharge. Currently, it is widely used in electronic devices, IT and automobile industries. With high-output and long life
span, the super capacitor is being increasingly applied for many different areas, including AMI, VSP, smart TVs, home appliances, wind power/ solar energy
generation, electric car, smart grid, standby power, etc.

Since its establishment in 2007, Pureechem has been dedicated to becoming a reliable supplier of parts and materials for eco-friendly and renewable energy
business through constant technical innovations. All staff members of Pureechem are working on building a world-class core technology company under the corporate vision of “Innovative Technology Leader.”
