Outdoor Wireless AP+Mesh Communication Equipment

https://korean-electronics.com//inquiryHighest-Performance and Designed for the Harshest Outdoor Wireless AP

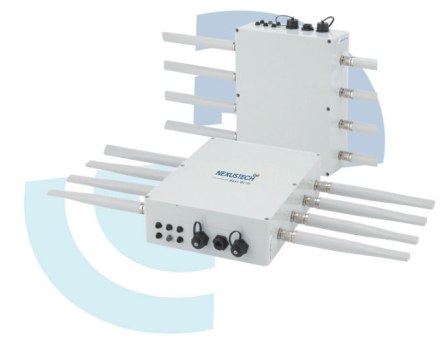

[INQ. NO. 1910E38] NEXUSTECH Co., Ltd. has recently released an outdoor wireless AP+Mesh communication enquipment called NX1700.
NX1700’s outdoor access point is suitable for both public enterprises and carrier-class network operators looking to extend Wi-Fi coverage outdoors. It offers proactive and highest-performing outdoor AP and also supports the latest Wi-Fi standard, 802.11ac wave 2, along with data connection speeds of up to 1.7 Gbps.
NX1700 AP supports 4×4 Multi-user, Multiple-Input and Multiple-Output (MU-MIMO) technology and 9 spatial streams (9SS) with Multi Hop (3-HOP) for optimum performance.
Its product of provided 1.7 Gbps was released in Korea for the first time.
The NX1700 outdoor Wi-Fi access point provides high-quality performance throughput over a larger area (distance between APs is 20Km) with more extensive coverage. The recommended number of concurrent users is 512 per unit based on average data usage with high speed (up to 1.7Gbps) in the place where many users in close proximity generate RF interference that needs to be managed.

Special and Unique Benefits of NX1700
NEXUSTECH’s NX1700 is integrated with ‘Outdoor Wireless AP’ and ‘Mesh’ All-In-One product.
Moreover, NEXUSTECH Co.,Ltd. meets the customer’s needs for its product by providing customized-service.
One of the most differentiated technologies is using multi hop optimization. To improve 3-HOP performance, we use 3 wireless channels(CH), processing by each processor to improve efficiency and Integrated type L2 switching for connecting three independent RF modules.
Second, The NX1700 has 4 radios (Wireless 1 -2.4G, Two of Wireless 2 5G, Wireless Console) more detailed information is in the table.

Third, The NX1700 uses open source firmware Openwrt, which provides many capabilities found in high-end devices with more than 3,000 application packages, So it is an ideal platform to be an IoT Gateway or for Smart City Wi-Fi infrastructure.

korean-electronics.com | Blog Magazine of korean electronics, brands and Goods
